Dayco PB1117SS Engine Harmonic Balancer

Tips to find exact part.

1 If this is not the part you are looking for. We have 286 more Engine Harmonic Balancer from Dayco, Click here to see all Dayco Engine Harmonic Balancer part numbers.

2You can also use our Year, Make and Model Search to find the exact part you are looking for your car. Please click here.

Part Name: Engine Harmonic BalancerBrand: DaycoPart#: PB1117SS
Engine Harmonic Balancer DY PB1117SS
Engine Harmonic Balancer DY PB1117SSEngine Harmonic Balancer DY PB1117SSEngine Harmonic Balancer DY PB1117SS

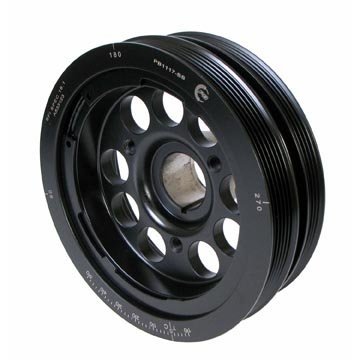

Dayco PB1117SS Engine Harmonic Balancer

DY

Description:

  • RACE PERFORMANCE BALANCER POWERBOND

Part Specifications:

  • Overall Outside Diameter : 7.233
  • Overall Outside Diameter : 183.70
  • Crank Bore : 1.481
  • Crank Bore : 37.60
  • Overall Width : 2.817
  • Overall Width : 71.55
  • Nose Outside Diameter : 2.126
  • Nose Outside Diameter : 54.00
  • Ring Width : 2.402
  • Ring Width : 60.99
  • Bolt Hole Quantity : 3
  • Crank Trigger/Exciter Plate : No
  • Woodruff Key Included : No
  • Hardware Included : No
  • Counterweight Balance : Neutral, no counterweight
  • Timing Marks : Yes
  • Installation Instructions Included : Yes
  • Number of Integrated Pulleys : 2
  • Pulley 1 Type : Serpentine
  • Pulley 1 Outside Diameter : 7.060
  • Pulley 1 Outside Diameter : 179.300
  • Pulley 1 Number Of Grooves : 4
  • Pulley 2 Type : Serpentine
  • Pulley 2 Outside Diameter : 7.327
  • Pulley 2 Outside Diameter : 186.100
  • Pulley 2 Number Of Grooves : 6
  • Outer Ring Material : Steel
New
317010711170
Out Of Stock
