1997 Nissan Maxima HVAC Heater Hose

Part Name: HVAC Heater HoseBrand: GatesPart#: 28474

Gates HVAC Heater Hose 28474 - Pipe-1 To Pipe-3

Position: Pipe-1 To Pipe-3

Description:

90 Deg Molded Heater Hose

Part Specifications:

Centerline Length : 10
Arm Length 1 : 4
Arm Length 1 : 101.6
Arm Length 2 : 6
Arm Length 2 : 152.4
Inside Diameter 1 : .75
Angle : 90

Features:

Specially designed for difficult heater hose applications requiring sharp 90 degree bends in the hose. Eliminates the need for extensive inventory of OE type curved heater hose. Just 22 sizes handle thousands of applications.
- Engineered to resist electrochemical degradation the leading cause of hose failure.
- Resists water permeation.
- Similar to heater SAE 20R3 Type EC Class D-2.
- Use with heater hose connectors and bulk heater hose for virtually complete molded heater hose coverage.
- Temperature Rating: -40F to 275F (-40C to 135C).
Caution: Do not use for fuel or oil transfer applications.
Gates Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Fit Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Cut to fit - 90º Molded Heater Hose Fuel Type: GAS Pipe-1 To Pipe-3
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Cut to fit - 90º Molded Heater Hose	Fuel Type: GAS	Pipe-1 To Pipe-3

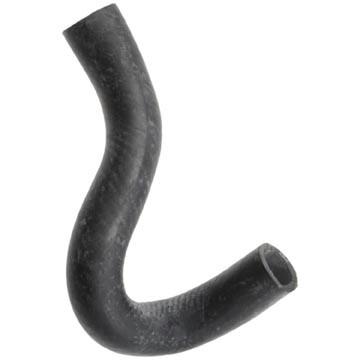

Part Name: HVAC Heater HoseBrand: DaycoPart#: 88400

1997 Nissan Maxima HVAC Heater Hose DY 88400

Dayco HVAC Heater Hose 88400 - Heater To Valve

Position: Heater To Valve

Description:

MOLDED HEATER HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 7
End 1 Inside Diameter : 3/4
End 2 Inside Diameter : 3/4
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R3 Class D-1, SAE J1684 Type EC

Features:

Dayco® Small I.D. Molded Heater Hose is designed to replace OEM coolant hose in applications where molded hose in small diameters (1" I.D. or smaller) is required. The molded configuration eliminates the need for multiple connections of hoses and clamps. The knitted reinforcement and synthetic EPDM construction provides high strength and resistance to detrimental environmental elements, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C). In addition to meeting SAE J20R4, Class D-1 requirements, this hose is designed to meet Type EC electro-chemical requirements as specified in SAE J1684. If the OE parts have a “quick connect” end, Dayco’s Small I.D. Molded Heater Hoses are also made with the quick connect assembled onto the hose for fast, convenient installation.

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Small I.D. Heater Hose Heater To Valve
Part Interchange
ACDelco 14308S
CARQUEST 19729
Datsun/Nissan 94202-40U00
Duralast C88400
Gates 19729
NAPA 11729
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Small I.D. Heater Hose	Heater To Valve

Part Name: HVAC Heater HoseBrand: DaycoPart#: 86817

1997 Nissan Maxima HVAC Heater Hose DY 86817

Dayco HVAC Heater Hose 86817 - Throttle Body To Intake Manifold

Position: Throttle Body To Intake Manifold

Description:

MOLDED HEATER HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 7-1/2
End 1 Inside Diameter : 5/16
End 2 Inside Diameter : 5/16
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R3 Class D-1, SAE J1684 Type EC

Features:

Dayco® Small I.D. Molded Heater Hose is designed to replace OEM coolant hose in applications where molded hose in small diameters (1" I.D. or smaller) is required. The molded configuration eliminates the need for multiple connections of hoses and clamps. The knitted reinforcement and synthetic EPDM construction provides high strength and resistance to detrimental environmental elements, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C). In addition to meeting SAE J20R4, Class D-1 requirements, this hose is designed to meet Type EC electro-chemical requirements as specified in SAE J1684. If the OE parts have a “quick connect” end, Dayco’s Small I.D. Molded Heater Hoses are also made with the quick connect assembled onto the hose for fast, convenient installation.

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Position
3.0L V6 GXE, SE, GLE, GLE-E Cut to Fit - Small I.D. Heater Hose Throttle Body To Intake Manifold

Engine	Sub Model	Notes	Position
3.0L V6	GXE, SE, GLE, GLE-E	Cut to Fit - Small I.D. Heater Hose	Throttle Body To Intake Manifold

Part Interchange

ACDelco	14040S
ACDelco	14042S
ACDelco	14031S
ACDelco	14588S
CARQUEST	18223
CARQUEST	18099
CARQUEST	18238
Datsun/Nissan	14046-1E413
Duralast	B86817
Gates	18240
Gates	18238
Gates	18223
Gates	18099
NAPA	10238
NAPA	10223
NAPA	10099
NAPA	10240
Toyota	16267-35030

Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Part Name: HVAC Heater HoseBrand: DaycoPart#: 88401

1997 Nissan Maxima HVAC Heater Hose DY 88401

Dayco HVAC Heater Hose 88401 - Heater Inlet

Position: Heater Inlet

Description:

MOLDED HEATER HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 14
End 1 Inside Diameter : 3/4
End 2 Inside Diameter : 3/4
Contains Protective Sleeve : Y
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R3 Class D-1, SAE J1684 Type EC

Features:

Dayco® Small I.D. Molded Heater Hose is designed to replace OEM coolant hose and provide long, reliable service. Made with the same bends and routing as the OEM assembly, this hose is designed to fit the vehicle precisely. The knitted reinforcement and synthetic EPDM construction provides high strength and resistance to detrimental environmental elements, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C). In addition to meeting SAE J20R4, Class D-1 requirements, this hose is designed to meet Type EC electro-chemical requirements as specified in SAE J1684. This hose is made with a protective sleeve that protects contact areas against abrasion and heat.

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Position
3.0L V6 GLE-E, SE, GLE, GXE Small I.D. Heater Hose Heater Inlet
Part Interchange
ACDelco 18163L
Datsun/Nissan 92400-40U01
Datsun/Nissan 92400-2Y900
Duralast B88401
Gates 19756
NAPA 11756
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
3.0L V6	GLE-E, SE, GLE, GXE	Small I.D. Heater Hose	Heater Inlet

Part Name: HVAC Heater HoseBrand: DaycoPart#: 88402

1997 Nissan Maxima HVAC Heater Hose DY 88402

Dayco HVAC Heater Hose 88402 - Heater Outlet

Position: Heater Outlet

Description:

MOLDED HEATER HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 17
End 1 Inside Diameter : 3/4
End 2 Inside Diameter : 3/4
Contains Protective Sleeve : Y
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R3 Class D-1, SAE J1684 Type EC

Features:

Dayco® Small I.D. Molded Heater Hose is designed to replace OEM coolant hose and provide long, reliable service. Made with the same bends and routing as the OEM assembly, this hose is designed to fit the vehicle precisely. The knitted reinforcement and synthetic EPDM construction provides high strength and resistance to detrimental environmental elements, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C). In addition to meeting SAE J20R4, Class D-1 requirements, this hose is designed to meet Type EC electro-chemical requirements as specified in SAE J1684. This hose is made with a protective sleeve that protects contact areas against abrasion and heat.

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Small I.D. Heater Hose Heater Outlet
Part Interchange
ACDelco 18412L
ACDelco 18162L
CARQUEST 19755
CARQUEST 19899
Datsun/Nissan 92410-2Y900
Datsun/Nissan 92410-5Y700
Datsun/Nissan 92410-8J100
Datsun/Nissan 92410-40U00
Duralast E88402
Gates 19899
Gates 19755
NAPA 11899
NAPA 11755
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Small I.D. Heater Hose	Heater Outlet

Part Name: HVAC Heater HoseBrand: GatesPart#: 28407

1997 Nissan Maxima HVAC Heater Hose ZO 28407

Gates HVAC Heater Hose 28407 - Pipe-1 To Throttle Body, Pipe-3 To Tee-1

Position: Pipe-1 To Throttle Body, Pipe-3 To Tee-1

Description:

Straight Heater Hose Standard

Part Specifications:

Centerline Length : 50
Centerline Length : 15.24
Centerline Length : 600
Inside Diameter 1 : .25
Working Pressure : 60
Weight Per Length : 6 lbs./Carton

Features:

Premium hose constructed for long service life.
- Unaffected by most coolants and non-oil based coolant additives and by high cooling system pressures
- Good resistance to high temperatures for extended periods of time
- Similar to SAE 20R3 Class D-2
- Temperature rating: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
CAUTION: Do not use for fuel or oil transfer applications.
Gates Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Fit Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Cut to Length, 7" - Straight Heater Hose (Standard) Fuel Type: GAS Pipe-1 To Throttle Body, Pipe-3 To Tee-1
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Cut to Length, 7" - Straight Heater Hose (Standard)	Fuel Type: GAS	Pipe-1 To Throttle Body, Pipe-3 To Tee-1

Part Name: HVAC Heater HoseBrand: GatesPart#: 19756

1997 Nissan Maxima HVAC Heater Hose ZO 19756

Gates HVAC Heater Hose 19756 - Heater To Pipe-1

Position: Heater To Pipe-1

Description:

Molded Heater Hose

Part Specifications:

Centerline Length : 36.4
Inside Diameter 1 : .75
Number of Branches : 0

Features:

Gates Small I.D. Molded Coolant Hose is factory-molded, OEM style hose to fit today s smaller, tighter-fitting engine compartments. Can be used for coolant, water and air applications. Approved for marine applications.
- Similar to OEM specifications.
- Has all the quality features of Gates Molded Coolant Hose.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Inside diameters range from 1/4 to 1 .
- Meets SAE 20R3 type EC Class D-1 and D-2 specifications.
Temperature rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Fit Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Molded Heater Hose Fuel Type: GAS Heater To Pipe-1
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Molded Heater Hose	Fuel Type: GAS	Heater To Pipe-1

Part Name: HVAC Heater HoseBrand: GatesPart#: 19755

1997 Nissan Maxima HVAC Heater Hose ZO 19755

Gates HVAC Heater Hose 19755 - Heater To Tee-1

Position: Heater To Tee-1

Description:

Molded Heater Hose

Part Specifications:

Centerline Length : 34.6
Inside Diameter 1 : .75
Number of Branches : 0

Features:

Gates Small I.D. Molded Coolant Hose is factory-molded, OEM style hose to fit today s smaller, tighter-fitting engine compartments. Can be used for coolant, water and air applications. Approved for marine applications.
- Similar to OEM specifications.
- Has all the quality features of Gates Molded Coolant Hose.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Inside diameters range from 1/4 to 1 .
- Meets SAE 20R3 type EC Class D-1 and D-2 specifications.
Temperature rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Fit Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Molded Heater Hose Fuel Type: GAS Heater To Tee-1
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
3.0L V6	GLE, GLE-E, GXE, SE	Molded Heater Hose	Fuel Type: GAS	Heater To Tee-1

Part Name: HVAC Heater HoseBrand: GatesPart#: 28408

1997 Nissan Maxima HVAC Heater Hose ZO 28408

Gates HVAC Heater Hose 28408 - Pipe-3 To Intake Manifold

Position: Pipe-3 To Intake Manifold

Description:

Straight Heater Hose Standard

Part Specifications:

Centerline Length : 50
Centerline Length : 15.24
Centerline Length : 600
Inside Diameter 1 : .3125
Working Pressure : 60
Weight Per Length : 7.25 lbs./Carton

Features:

Premium hose constructed for long service life.
- Unaffected by most coolants and non-oil based coolant additives and by high cooling system pressures
- Good resistance to high temperatures for extended periods of time
- Similar to SAE 20R3 Class D-2
- Temperature rating: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
CAUTION: Do not use for fuel or oil transfer applications.
Gates Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 1997 Nissan Maxima Engines.
Engine Sub Model Notes Fit Notes Position
3.0L V6 GLE, GLE-E, GXE, SE Cut to Length, 5" - Straight Heater Hose (Standard) Fuel Type: GAS Pipe-3 To Intake Manifold
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

My Vehicle:

1997 Nissan Maxima HVAC Heater Hose

Gates HVAC Heater Hose 28474 - Pipe-1 To Pipe-3

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88400 - Heater To Valve

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 86817 - Throttle Body To Intake Manifold

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88401 - Heater Inlet

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88402 - Heater Outlet

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 28407 - Pipe-1 To Throttle Body, Pipe-3 To Tee-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 19756 - Heater To Pipe-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 19755 - Heater To Tee-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 28408 - Pipe-3 To Intake Manifold

Description:

Part Specifications:

Features:

Related HVAC Parts

ACDelco	14308S
CARQUEST	19729
Datsun/Nissan	94202-40U00
Duralast	C88400
Gates	19729
NAPA	11729

ACDelco	18163L
Datsun/Nissan	92400-40U01
Datsun/Nissan	92400-2Y900
Duralast	B88401
Gates	19756
NAPA	11756

ACDelco	18412L
ACDelco	18162L
CARQUEST	19755
CARQUEST	19899
Datsun/Nissan	92410-2Y900
Datsun/Nissan	92410-5Y700
Datsun/Nissan	92410-8J100
Datsun/Nissan	92410-40U00
Duralast	E88402
Gates	19899
Gates	19755
NAPA	11899
NAPA	11755

My Vehicle:

1997 Nissan Maxima HVAC Heater Hose

Gates HVAC Heater Hose 28474 - Pipe-1 To Pipe-3

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88400 - Heater To Valve

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 86817 - Throttle Body To Intake Manifold

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88401 - Heater Inlet

Description:

Part Specifications:

Features:

Dayco HVAC Heater Hose 88402 - Heater Outlet

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 28407 - Pipe-1 To Throttle Body, Pipe-3 To Tee-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 19756 - Heater To Pipe-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 19755 - Heater To Tee-1

Description:

Part Specifications:

Features:

Gates HVAC Heater Hose 28408 - Pipe-3 To Intake Manifold

Description:

Part Specifications:

Features:

Related HVAC Parts

What Is MAP Price?

What Is MAP Price?

Core Return Process

Parts list X

Part added to your Kart X

Find exact fit part for your car. X
