2010 Toyota Corolla Radiator Coolant Hose

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 71356

Dayco Radiator Coolant Hose 71356 - Upper - Engine To Tee

Position: Upper - Engine To Tee

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 4 3/8
End 1 Inside Diameter : 1 1/4
End 2 Inside Diameter : 1 1/4
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
2.4L L4 XRS Curved Radiator Hose Upper - Engine To Tee

Engine	Sub Model	Notes	Position
2.4L L4	XRS	Curved Radiator Hose	Upper - Engine To Tee

Part Interchange

ACDelco	20191S
ACDelco	20168S
Atlas	MC161
CARQUEST	21461
CARQUEST	21533
Chrysler	T0248159
Chrysler	7910.248.159
Datsun/Nissan	21504-17C10
Duralast	A71356
Ford	9L8Z-8A577-A
Freshstart	3042
Gates	21461
Gates	21533
General Motors	88975756
General Motors	94840254
General Motors	25909893
General Motors	25844697
General Motors	15781168
General Motors	25844698
Goodyear	63004
Motorcraft	KM4998
NAPA	8248
NAPA	8175
Toyota	16262-15010
Toyota	16571-0H180

Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 72460

2010 Toyota Corolla Radiator Coolant Hose DY 72460

Dayco Radiator Coolant Hose 72460 - Upper - Tee To Radiator

Position: Upper - Tee To Radiator

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 10 1/2
End 1 Inside Diameter : 1 5/16
End 2 Inside Diameter : 1 5/16
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
1.8L L4 Base, CE, LE, S, XLE Curved Radiator Hose Upper - Tee To Radiator
Part Interchange
ACDelco 20528S
CARQUEST 23521
Duralast C72460
Gates 23521
Goodyear 66202
NAPA 16252
Toyota 16573-0T040
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Curved Radiator Hose	Upper - Tee To Radiator

Part Name: Radiator Coolant HoseBrand: GatesPart#: 21461

2010 Toyota Corolla Radiator Coolant Hose ZO 21461

Gates Radiator Coolant Hose 21461 - Upper - Tee To Engine

Position: Upper - Tee To Engine

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 3.7
Inside Diameter 1 : 1.19
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
2.4L L4 XRS Molded Coolant Hose Fuel Type: GAS Upper - Tee To Engine
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
2.4L L4	XRS	Molded Coolant Hose	Fuel Type: GAS	Upper - Tee To Engine

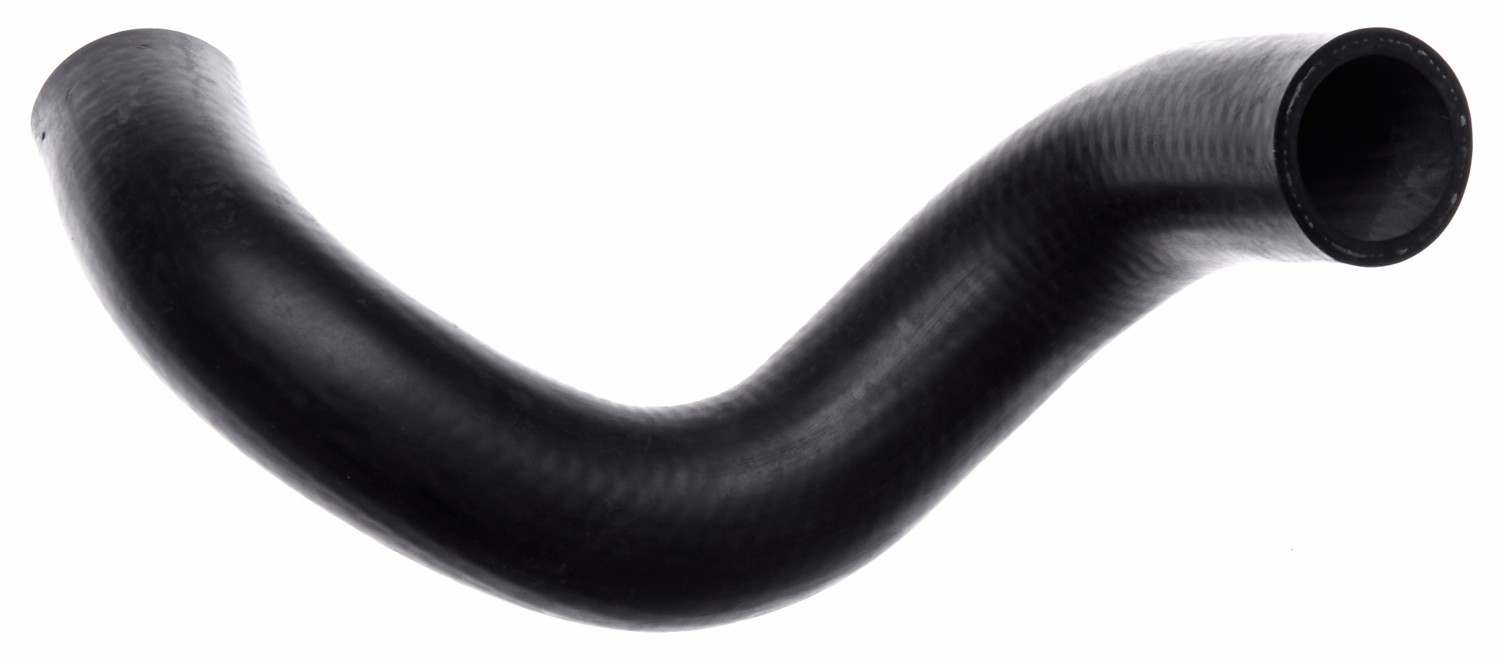

Part Name: Radiator Coolant HoseBrand: GatesPart#: 23521

2010 Toyota Corolla Radiator Coolant Hose ZO 23521

Gates Radiator Coolant Hose 23521 - Upper - Radiator To Tee

Position: Upper - Radiator To Tee

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 13.8
Inside Diameter 1 : 1.31
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
1.8L L4 Base, CE, LE, S, XLE Molded Coolant Hose Fuel Type: GAS Upper - Radiator To Tee
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Molded Coolant Hose	Fuel Type: GAS	Upper - Radiator To Tee

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 72458

2010 Toyota Corolla Radiator Coolant Hose DY 72458

Dayco Radiator Coolant Hose 72458 - Upper - Engine To Tee

Position: Upper - Engine To Tee

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Dual I.D. Hose
Trunk Height : 11
End 1 Inside Diameter : 1 3/16
End 2 Inside Diameter : 1 5/16
Contains Protective Sleeve : Y
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges. This hose is also made with a protective sleeve that protects contact areas against abrasion and heat.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
1.8L L4 Base, CE, LE, S, XLE Curved Radiator Hose Upper - Engine To Tee
Part Interchange
ACDelco 20527S
CARQUEST 23519
Duralast C72458
Gates 23519
Goodyear 66204
NAPA 16251
Toyota 16571-0T040
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Curved Radiator Hose	Upper - Engine To Tee

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 72459

2010 Toyota Corolla Radiator Coolant Hose DY 72459

Dayco Radiator Coolant Hose 72459 - Lower

Position: Lower

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 10
End 1 Inside Diameter : 1 5/16
End 2 Inside Diameter : 1 5/16
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
1.8L L4 Base, CE, LE, S, XLE Curved Radiator Hose Lower
Part Interchange
ACDelco 20529S
CARQUEST 23522
Duralast C72459
Gates 23522
Goodyear 66205
NAPA 16253
Toyota 16572-0T040
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Curved Radiator Hose	Lower

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 71947

2010 Toyota Corolla Radiator Coolant Hose DY 71947

Dayco Radiator Coolant Hose 71947 - Upper - Tee To Radiator

Position: Upper - Tee To Radiator

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 14
End 1 Inside Diameter : 1 5/16
End 2 Inside Diameter : 1 5/16
Contains Protective Sleeve : Y
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
2.4L L4 XRS Curved Radiator Hose Upper - Tee To Radiator
Part Interchange
ACDelco 26343X
ACDelco 22657M
CARQUEST 22332
CARQUEST 23528
Duralast E71947
Freshstart 1169
Gates 22332
Gates 23528
General Motors 22680642
General Motors 22594000
Goodyear 62215
MasterPro 22332
NAPA 8965
NAPA 16257
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
2.4L L4	XRS	Curved Radiator Hose	Upper - Tee To Radiator

Part Name: Radiator Coolant HoseBrand: GatesPart#: 23519

2010 Toyota Corolla Radiator Coolant Hose ZO 23519

Gates Radiator Coolant Hose 23519 - Upper - Tee To Engine

Position: Upper - Tee To Engine

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 12.9
Inside Diameter 1 : 1.18
Inside Diameter 2 : 1.3
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
1.8L L4 Base, CE, LE, S, XLE Molded Coolant Hose Fuel Type: GAS Upper - Tee To Engine
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Molded Coolant Hose	Fuel Type: GAS	Upper - Tee To Engine

Part Name: Radiator Coolant HoseBrand: GatesPart#: 23522

2010 Toyota Corolla Radiator Coolant Hose ZO 23522

Gates Radiator Coolant Hose 23522 - Lower

Position: Lower

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 14.3
Inside Diameter 1 : 1.31
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
1.8L L4 Base, CE, LE, S, XLE Molded Coolant Hose Fuel Type: GAS Lower
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
1.8L L4	Base, CE, LE, S, XLE	Molded Coolant Hose	Fuel Type: GAS	Lower

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 72678

2010 Toyota Corolla Radiator Coolant Hose DY 72678

Dayco Radiator Coolant Hose 72678 - Lower

Position: Lower

Description:

CURVED RADIATOR HOSE DAYCO

Part Specifications:

Hose Type : Single I.D. Hose
Trunk Height : 10 1/2
End 1 Inside Diameter : 1 5/16
End 1 Outside Diameter : 1 3/4
End 2 Inside Diameter : 1 5/16
End 2 Outside Diameter : 1 3/4
Contains Protective Sleeve : N
Contains Heat Shield : N
Color : Black
Material : EPDM
SAE Specification : SAE J20R4 Class D-1, SAE J1684 Type EC

Features:

Dayco® Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40°F (-40°C) to +257°F (+125°C) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges.

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Position
2.4L L4 XRS Curved Radiator Hose Lower
Part Interchange
ACDelco 20532S
CARQUEST 23529
Duralast C72678
Gates 23529
General Motors 88975758
Goodyear 66201
NAPA 16258
Toyota 16572-0H150
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
2.4L L4	XRS	Curved Radiator Hose	Lower

Part Name: Radiator Coolant HoseBrand: GatesPart#: 23528

2010 Toyota Corolla Radiator Coolant Hose ZO 23528

Gates Radiator Coolant Hose 23528 - Upper - Radiator To Tee

Position: Upper - Radiator To Tee

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 18.9
Inside Diameter 1 : 1.29
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
2.4L L4 XRS Molded Coolant Hose Fuel Type: GAS Upper - Radiator To Tee
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
2.4L L4	XRS	Molded Coolant Hose	Fuel Type: GAS	Upper - Radiator To Tee

Part Name: Radiator Coolant HoseBrand: GatesPart#: 23529

2010 Toyota Corolla Radiator Coolant Hose ZO 23529

Gates Radiator Coolant Hose 23529 - Lower

Position: Lower

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 13.2
Inside Diameter 1 : 1.31
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
2.4L L4 XRS Molded Coolant Hose Fuel Type: GAS Lower
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
2.4L L4	XRS	Molded Coolant Hose	Fuel Type: GAS	Lower

Part Name: Radiator Coolant HoseBrand: GatesPart#: 28409

2010 Toyota Corolla Radiator Coolant Hose ZO 28409

Gates Radiator Coolant Hose 28409 - Upper - Tee To Radiator

Position: Upper - Tee To Radiator

Description:

Straight Heater Hose Standard

Part Specifications:

Centerline Length : 50
Centerline Length : 15.24
Centerline Length : 600
Inside Diameter 1 : .375
Working Pressure : 60
Weight Per Length : 8.25 lbs./Carton

Features:

Premium hose constructed for long service life.
- Unaffected by most coolants and non-oil based coolant additives and by high cooling system pressures
- Good resistance to high temperatures for extended periods of time
- Similar to SAE 20R3 Class D-2
- Temperature rating: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
CAUTION: Do not use for fuel or oil transfer applications.
Gates Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 2010 Toyota Corolla Engines.
Engine Sub Model Notes Fit Notes Position
2.4L L4 XRS Cut to Length, 24" - Straight Heater Hose (Standard) Fuel Type: GAS Upper - Tee To Radiator
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

ACDelco	20528S
CARQUEST	23521
Duralast	C72460
Gates	23521
Goodyear	66202
NAPA	16252
Toyota	16573-0T040

ACDelco	20527S
CARQUEST	23519
Duralast	C72458
Gates	23519
Goodyear	66204
NAPA	16251
Toyota	16571-0T040

ACDelco	20529S
CARQUEST	23522
Duralast	C72459
Gates	23522
Goodyear	66205
NAPA	16253
Toyota	16572-0T040

ACDelco	26343X
ACDelco	22657M
CARQUEST	22332
CARQUEST	23528
Duralast	E71947
Freshstart	1169
Gates	22332
Gates	23528
General Motors	22680642
General Motors	22594000
Goodyear	62215
MasterPro	22332
NAPA	8965
NAPA	16257

ACDelco	20532S
CARQUEST	23529
Duralast	C72678
Gates	23529
General Motors	88975758
Goodyear	66201
NAPA	16258
Toyota	16572-0H150

My Vehicle:

2010 Toyota Corolla Radiator Coolant Hose

Dayco Radiator Coolant Hose 71356 - Upper - Engine To Tee

Description:

Part Specifications:

Features:

Dayco Radiator Coolant Hose 72460 - Upper - Tee To Radiator

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 21461 - Upper - Tee To Engine

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 23521 - Upper - Radiator To Tee

Description:

Part Specifications:

Features:

Dayco Radiator Coolant Hose 72458 - Upper - Engine To Tee

Description:

Part Specifications:

Features:

Dayco Radiator Coolant Hose 72459 - Lower

Description:

Part Specifications:

Features:

Dayco Radiator Coolant Hose 71947 - Upper - Tee To Radiator

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 23519 - Upper - Tee To Engine

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 23522 - Lower

Description:

Part Specifications:

Features:

Dayco Radiator Coolant Hose 72678 - Lower

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 23528 - Upper - Radiator To Tee

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 23529 - Lower

Description:

Part Specifications:

Features:

Gates Radiator Coolant Hose 28409 - Upper - Tee To Radiator

Description:

Part Specifications:

Features:

Related Belts and Cooling Parts

What Is MAP Price?

What Is MAP Price?

Core Return Process

Parts list X

Part added to your Kart X

Find exact fit part for your car. X
