1996 AM General Hummer Radiator Coolant Hose

We have found 5 Radiator Coolant Hose for

1996 AM General Hummer

Part Name: Radiator Coolant HoseBrand: GatesPart#: 20974

Gates Radiator Coolant Hose 20974 - Upper - Pipe To Thermostat

Position: Upper - Pipe To Thermostat

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 13.8
Inside Diameter 1 : 1.75
Number of Branches : 0
Contains Spring : No

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 1996 AM General Hummer Engines.
Engine Sub Model Notes Fit Notes Position
6.5L V8 Base Cut to fit - Molded Coolant Hose Fuel Type: DIESEL Upper - Pipe To Thermostat
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
6.5L V8	Base	Cut to fit - Molded Coolant Hose	Fuel Type: DIESEL	Upper - Pipe To Thermostat

Part Name: Radiator Coolant HoseBrand: GatesPart#: 20685

1996 AM General Hummer Radiator Coolant Hose ZO 20685

Gates Radiator Coolant Hose 20685 - Lower - Pipe To Radiator

Position: Lower - Pipe To Radiator

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 9.2
Inside Diameter 1 : 2
Contains Spring : Yes
Number of Branches : 0

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 1996 AM General Hummer Engines.
Engine Sub Model Notes Fit Notes Position
6.5L V8 Base Cut to fit - Molded Coolant Hose Fuel Type: DIESEL Lower - Pipe To Radiator
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
6.5L V8	Base	Cut to fit - Molded Coolant Hose	Fuel Type: DIESEL	Lower - Pipe To Radiator

Part Name: Radiator Coolant HoseBrand: DaycoPart#: 76175

1996 AM General Hummer Radiator Coolant Hose DY 76175

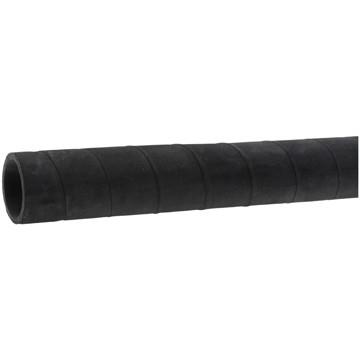

Dayco Radiator Coolant Hose 76175 - Upper - Radiator To Pipe

Position: Upper - Radiator To Pipe

Description:

STRAIGHT RADIATOR HOSE STANDARD DAYCO

Features:

Designed for a wide range of light and heavy duty truck applications where the radiator hose routing is relatively straight, Dayco’s Straight Radiator Hose features knitted einforcement and synthetic EPDM rubber construction. It meets SAE J20R4, Class D-2 requirements and provides high strength and resistance to ozone and other detrimental environmental elements, coolants, and temperature variations from -40°F (-40°C) to +257°F (+125°C). This Straight Radiator Hose is another Dayco® product proudly made in the USA. Note: This hose is NOT suitable for fuel or oil transfer.

Condition: New

Fitments
This Part Fits Following 1996 AM General Hummer Engines.
Engine Sub Model Notes Position
6.5L V8 Base Cut to Fit - Straight Radiator Hose Upper - Radiator To Pipe
Part Interchange
ACDelco 31009
CARQUEST 24028
Gates 24028
Goodyear 56028
NAPA 611
Warranty & Easy Return
Manufacturer’s Warranty : 12 Months/12,000 Miles
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty or 2 years whichever is the highest.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Position
6.5L V8	Base	Cut to Fit - Straight Radiator Hose	Upper - Radiator To Pipe

Part Name: Radiator Coolant HoseBrand: GatesPart#: 24028

1996 AM General Hummer Radiator Coolant Hose ZO 24028

Gates Radiator Coolant Hose 24028 - Upper - Radiator To Pipe

Position: Upper - Radiator To Pipe

Description:

Straight Coolant Hose Standard

Part Specifications:

Centerline Length : 3
Centerline Length : .91
Centerline Length : 36
Inside Diameter 1 : 1.75
Working Pressure : 50
Construction : 2-Ply

Features:

Specially engineered stick hose is ideal for straight coolant/air connections in automotive, stationary engine, industrial and home applications.
- Heat-resistant cover.
- Meets SAE 20R1 Standard Wall Class D-2 requirements.
- Cover marked in one-inch increments for easy measuring and cutting allows custom fit light-duty coolant installations.
- Temperature Rating: -40 Deg. F to 257 Deg. F (-40 Deg. C to 125 Deg. C).
Caution: Do not use for fuel or oil transfer applications.
Gates Powering Progress

Per Car Quantity: 2

Condition: New

Fitments
This Part Fits Following 1996 AM General Hummer Engines.
Engine Sub Model Notes Fit Notes Position
6.5L V8 Base Cut to Length, 5 1/4" - Straight Coolant Hose (Standard) Fuel Type: DIESEL Upper - Radiator To Pipe
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

Engine	Sub Model	Notes	Fit Notes	Position
6.5L V8	Base	Cut to Length, 5 1/4" - Straight Coolant Hose (Standard)	Fuel Type: DIESEL	Upper - Radiator To Pipe

Part Name: Radiator Coolant HoseBrand: GatesPart#: 22548

1996 AM General Hummer Radiator Coolant Hose ZO 22548

Gates Radiator Coolant Hose 22548 - Upper

Position: Upper

Description:

Molded Coolant Hose

Part Specifications:

Centerline Length : 39.6
Inside Diameter 1 : 1.76
Contains Spring : Yes
Number of Branches : 0

Features:

Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications.
- Recommend for upper, lower, by-pass, heater and other coolant hose applications.
- Heat and ozone resistant cover.
- Engineered to resist electrochemical degradation - the leading cause of hose failure.
- Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications.
- Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications.
Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications.
Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed.
Gates - Powering Progress

Condition: New

Fitments
This Part Fits Following 1996 AM General Hummer Engines.
Engine Sub Model Notes Fit Notes Position
6.5L V8 Base Cut to fit - Molded Coolant Hose Fuel Type: DIESEL Upper
Warranty & Easy Return
Manufacturer’s Warranty : Limited Lifetime
You can return the part within 30 days for any reasons.
After 30 days, all parts are covered under manufacturer’s warranty.
Refunds get issued within 24 to 48 hours to your mode of payment after return part received.

ACDelco	31009
CARQUEST	24028
Gates	24028
Goodyear	56028
NAPA	611
